IRC: Hessian Predictor–Corrector (HPC)

Overview

The HPC method is a predictor–corrector IRC integrator in which the predictor step is based on second-order Hessian information. HPC combines a second-order local quadratic approximation (LQA) predictor with a high-accuracy corrector integration on a locally fitted potential-energy surface. This gives a favorable balance between computational cost and path quality.

Algorithm

At each IRC step, the HPC method proceeds in three phases:

Predictor — Starting from the current IRC point, a predictor step is generated using the second-order LQA integrator in mass-weighted coordinates.
Evaluation — The energy and derivative information are evaluated at the predicted point. Together with the data from the previous point, this information is used to construct a local fitted potential-energy surface.
Corrector — A high-accuracy corrector integration is then performed on the fitted local surface, using a modified Bulirsch–Stoer scheme, to reduce finite-step deviation and obtain a point that more closely follows the IRC.

The Hessian is updated between steps using BFGS/Bofill update formulas to avoid expensive full Hessian recomputations at every IRC point.

Parameters

The complete HPCParams dataclass:

Parameter	Type	Default	Description
`target_mode`	int	1	Index of the imaginary mode to follow.
`step_length_bohr`	float	0.10	Step length in Bohr.
`max_steps`	int	50	Maximum IRC steps per direction.
`euler_n`	int	5000	Number of Euler sub-steps for the predictor.
`hessian_recalc`	int	None	Recalculate Hessian every N steps.
`hessian_update`	str	`bofill`	Hessian update: `"bfgs"` or `"bofill"`.
`dwi_n`	int	4	Number of distance-weighted interpolation points.
`mbs_max_k`	int	15	Maximum polynomial order for modified Bulirsch-Stoer.
`mbs_points`	int	20	Number of MBS integration points.
`mbs_tol`	float	1e-5	MBS convergence tolerance.
`f_max_th`	float	2e-3	Max force convergence threshold.
`f_rms_th`	float	5e-4	RMS force convergence threshold.
`print_each`	bool	True	Print details at each IRC point.
`write_traj`	bool	True	Write trajectory XYZ files.

Example: Dehydrohalogenation

In this example, we will perform the calculations for the CH3CH2F -> CH2CH2 + HF reaction involved in the original HPC reference. The TS structure is derived via the String method. To speed up the calculation, a larger step size of 0.15 was used.

Input Example

#model=aimnet2
#irc(method=hpc,step_length_bohr=0.15)
#device=gpu0

XYZ /path/to/transition_state.xyz

Output Visualization

After a brief wait for the calculation to complete, we can visualize the reaction path and the energy profile along the reaction coordinate.

HPC IRC animation — **Trajectory:** Simplified view of the reaction path

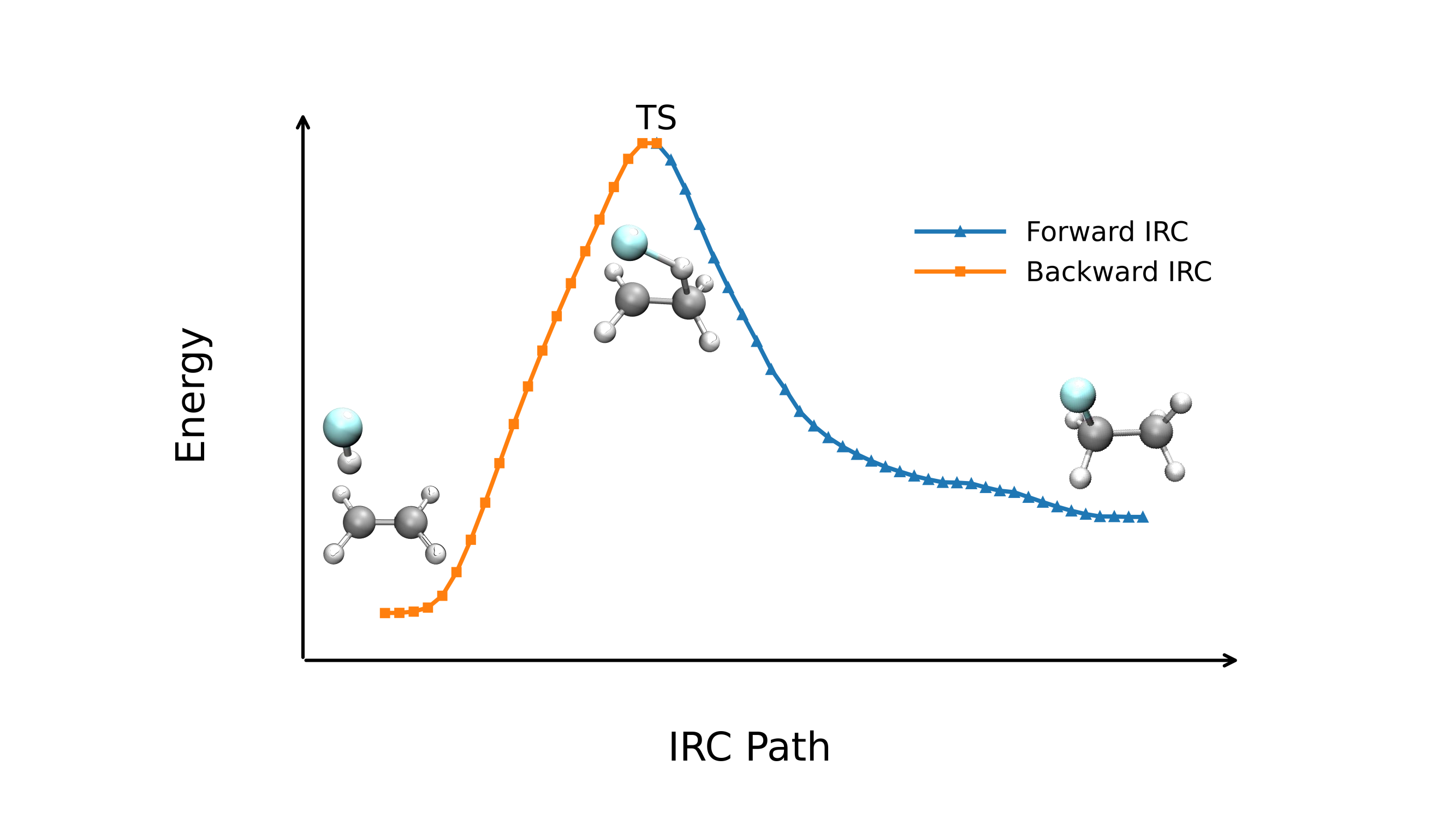

HPC IRC graph — **Graph:** Energy trend along the IRC path

Ref Structure

Transition State

8
Image 0  Energy = -179.06046123
C  -2.0232059669 -0.0727959625  0.0125441382
H  -2.5203834295 -1.0371318543  0.0792584332
H  -1.4508729125  0.0518015848 -0.9031470609
H  -2.8291660857  0.9415420231  0.2594518458
C  -1.5340413625  0.5058439206  1.1864655006
H  -1.8281739484  0.1363239914  2.1573191103
H  -0.7434990832  1.2406972886  1.1609842489
F  -2.9083899697  1.8448367975  1.1744474484

When to Use

The HPC method is recommended when:

The GS method is too slow due to the number of constrained optimization required at each IRC point.
You want a good balance between efficiency and path quality.
The PES has moderate curvature changes along the reaction path, where Hessian-based integration provides a clear advantage over simpler gradient-only methods.

For very smooth surfaces where maximum speed is desired, consider LQA. For extremely difficult or anharmonic surfaces where robustness is paramount, consider GS.
